The Ultimate Guide to Underfloor Air Distribution (UFAD)

What if you could say goodbye to the uneven temperatures, drafty rooms, and noisy vents associated with traditional HVAC systems? With Underfloor Air Distribution (UFAD), you can. This alternative heating and cooling system delivers precisely conditioned supply air through a network of hidden ducts beneath your floor, ensuring consistent temperatures throughout your space with whisper-quiet operation. More than that, with the improved indoor air quality of a UFAD system, you can breathe easier while enjoying increased comfort and energy efficiency.

Understanding Air Distribution Methods in HVAC

Effective air distribution is the cornerstone of a comfortable indoor environment. It’s key to maintaining consistent temperatures, ensuring proper ventilation, and optimizing energy consumption.

Traditional HVAC Air Distribution Systems

Most people are familiar with traditional HVAC air distribution systems, which use ceiling or wall-mounted ducts to distribute conditioned air from a central heating or cooling unit to each room. Ceiling-mounted vents then release the air downwards. While these systems are common in homes and commercial buildings, they can create uneven temperatures, causing uncomfortable hot or cold spots for building occupants.

Underfloor Air Distribution Systems

Underfloor air distribution is a modern alternative to traditional overhead systems, delivering air through a network of ducts installed beneath the floor. Conditioned air exits through floor-level diffusers, rising naturally and circulating throughout the space. An underfloor air distribution system’s approach reduces energy waste by focusing airflow in occupied zones rather than the space close to the ceiling.

Air Distribution & Its Impact on Indoor Air Quality

Air distribution directly affects indoor air quality by removing pollutants, allergens, and excess moisture, creating a healthier environment. For property owners focused on tenant satisfaction and energy savings, UFAD HVAC offers an efficient solution, enhancing comfort while reducing costs.

Get a Custom Commercial UFAD Quote

How Does a UFAD System Work?

Underfloor Air Distribution takes a different approach to heating and cooling by using the space beneath your floor and conditioning air from the bottom up. This method provides the same comfortable environment while maximizing energy efficiency. Let’s take a closer look at how this heating and cooling system works.

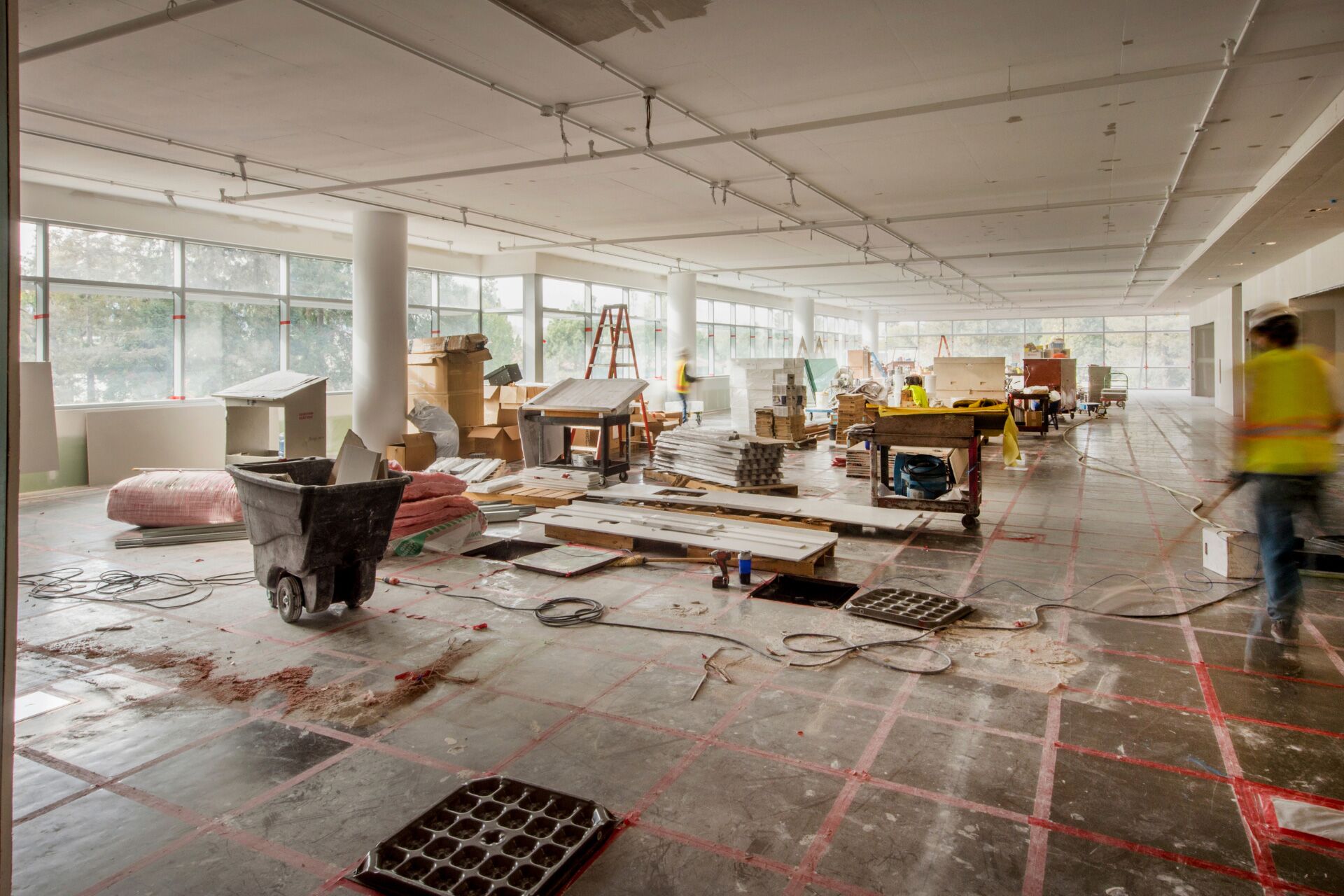

Raised Access Flooring

Underfloor air distribution begins with a raised access flooring system. This creates a concealed space, or plenum, between the structural floor and the walking surface. These underfloor plenums house the key components of the UFAD system.

Underfloor Ducts

A network of ducts is installed within the plenum. It carries conditioned air (heated or cooled) from a central air handling unit to different rooms.

Diffusers and Vents

Strategically placed diffusers or vents are integrated into the raised floor. These diffusers release conditioned air into the occupied zone. They can be adjusted to control airflow and temperature in specific areas.

Air Circulation and Return

The conditioned air delivered from the floor rises naturally, creating a comfortable and consistent temperature at ground level. As the air warms or cools, it’s drawn back into the system through return air grilles typically located in the ceiling. This creates a continuous cycle of fresh, comfortable air.

Image Source: Canva

Key Benefits of UFAD for Commercial Properties

An underfloor air distribution system offers a range of advantages that make it an increasingly popular choice for commercial buildings. Here are some key benefits:

• • ✓

    Enhanced Energy Efficiency: A UFAD system focuses on conditioning the occupied zone, reducing energy waste by minimizing airflow to unused ceiling space. This targeted approach can significantly lower energy consumption and operational costs.

  • ✓

    Improved Occupant Comfort: UFAD ensures consistent temperature distribution with upward airflow, reducing drafts and stratification for a more comfortable indoor environment. As a result, building occupants can be more focused and productive.

  • ✓

    Quieter Operation: UFAD HVAC systems typically require less fan power due to the natural buoyancy of air as it rises. This makes UFAD systems quieter, ideal for a peaceful and productive workspace.

  • ✓

    Superior Indoor Air Quality: UFAD’s upward underfloor ventilation pattern can improve indoor air quality by minimizing dust recirculation. As the air rises from the floor, it carries pollutants upwards and away from the occupied zone, improving air quality.

  • ✓

    Flexibility in Office Layout: Without bulky overhead ductwork, a UFAD system allows for flexible office layouts, making workspace reconfigurations easier.

  • ✓

    Sustainability and Green Building Certifications: UFAD reduces energy use and supports green building goals. Installing a UFAD system in your building can contribute toward green building certifications, such as LEED (Leadership in Energy and Environmental Design).

Get a Custom Commercial UFAD Quote

UFAD Systems vs. Traditional HVAC Systems

Choosing the right air distribution system for your commercial property can feel like navigating a maze of acronyms and technical jargon. But don’t worry, this section breaks down key differences between underfloor air distribution and traditional overhead HVAC air distribution systems in a clear and approachable way.

When Is UFAD More Beneficial?

UFAD truly shines in large, open-plan offices where maintaining consistent temperatures and optimal air quality across the entire space is crucial. It’s also particularly well-suited for buildings with high ceilings, as it avoids wasting energy on conditioning the air above occupants’ heads.

If you change your office layout frequently, underfloor ventilation offers flexibility without the constraint of fixed ductwork in the ceiling. For organizations with strong sustainability goals, UFAD’s energy efficiency and indoor air quality benefits can contribute to achieving green building certifications.

When Is Traditional HVAC More Suitable?

A traditional air distribution system suits smaller spaces where UFAD’s complex system may be unnecessary. In older buildings with existing infrastructure, retrofitting a UFAD system can be challenging and costly, making traditional HVAC the more practical option. For projects with tighter budgets, the lower upfront cost of traditional HVAC air distribution systems can be a significant motivating factor.

Image Source: Shutterstock

Design Considerations for a Successful UFAD System

Designing an effective underfloor air distribution system requires careful planning and attention to detail. It involves a comprehensive approach that considers the building’s architecture, occupant needs, and overall comfort goals.

Floor Height

UFAD systems need sufficient plenum space to accommodate ductwork, ensure proper airflow, and allow easy access for maintenance. Typically, a minimum floor height of 150mm (6 inches) is recommended, but this can vary depending on the specific design and system requirements.

Zoning

Dividing the space into different zones allows for customized temperature control and airflow management. Zoning ensures that the varying temperature needs of the property are met. For example, areas with high heat loads, like server rooms or areas with extensive glazing) require cooler temperatures to offset the heat generated inside.

Diffuser Placement

Diffusers must be placed strategically for optimal underfloor ventilation and occupant comfort. Consider the workstation locations, heat sources, and occupancy patterns when choosing where they should go. Diffusers should be positioned to deliver conditioned air to the occupied zone while minimizing drafts and discomfort.

Plenum Air Pressure

Maintaining proper air pressure within the underfloor plenum is essential for efficient system operation. Too much pressure can lead to air leakage and energy waste, while too little pressure can result in inadequate airflow. Careful design and system calibration are necessary to ensure optimal plenum air pressure.

Building Architecture

UFAD systems should be seamlessly integrated with the building’s architecture and interior design. Diffusers that blend with the floor can be chosen for a  finish, and the raised access floor can be incorporated into the overall design scheme.

A UFAD system also offers excellent design flexibility, allowing for easy reconfiguration of spaces without the constraints of overhead ductwork. This is particularly beneficial in dynamic environments where layouts may change frequently.
